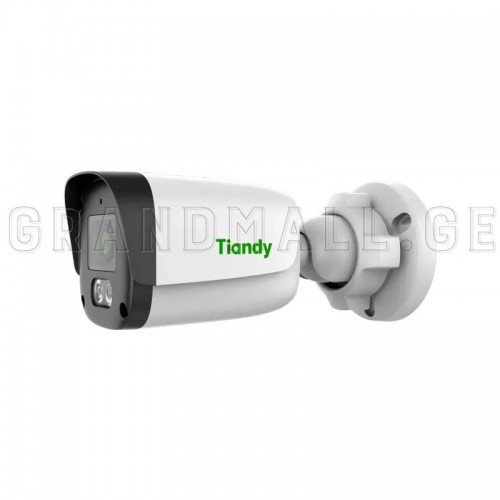

4MP Tiandy TC-C34WS Color Maker Bullet Camera 2.8 mm with 50 m IR and Built-in Mic
- Manufacturer:
- Model:TC-C34WS-SPEC-I5-W-E-Y-M-2.8MM-V4.2
- SKU:0021546
- 2000
- Weight:0.5 kg without packaging
- MP:4
Tiandy TC-C34WS – 4MP Color Maker bullet camera for true-color low-light surveillance
The TC-C34WS from Tiandy’s Lite Series is a 4MP Color Maker bullet camera designed to keep scenes colorful and detailed even in low-light environments. The 1/2.8" CMOS sensor with 0.002 Lux sensitivity (F1.6, AGC ON) and Starlight technology helps capture critical color information at night for better identification of people and vehicles.
Wide 2.8 mm lens, 120 dB WDR and dual IR/white illumination
A fixed 2.8 mm F1.6 lens provides a 94.7° horizontal and 118.5° diagonal field of view, ideal for entrances, small parking areas and building perimeters. Hardware 120 dB WDR, 3D DNR, BLC and HLC work together to balance bright highlights and dark shadows, delivering usable images in scenes with headlights or strong backlight.
Two IR LEDs (850 nm) provide up to 50 m infrared range, while two white LEDs add up to 15 m of visible whitelight, creating a “dual light” effect when needed. The IR-cut filter (ICR), Smart IR and automatic Day/Night switching maintain consistent exposure and prevent overexposed faces at close range.
IP67 metal housing, PoE and on-board microSD storage
A metal housing rated IP67 protects the camera against dust, rain and snow. The TC-C34WS is specified for −40°C to +65°C and up to 95% RH, making it suitable for harsh outdoor installations on walls, poles and eaves.
Power options include DC12V±25% (max 6 W) and PoE IEEE 802.3af (max 7 W), reducing cabling complexity. A built-in microphone records audio, while the microSD/microSDHC/microSDXC card slot supports up to 512 GB of local storage. Smart analytics such as Tripwire and Perimeter allow the camera to raise alarms on line-crossing and intrusion events.
SPECIFICATIONS:
- Series & Form Factor – Lite Series, fixed Color Maker bullet, metal housing
- Image Sensor – 1/2.8" CMOS
- Min. Illumination – Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
- Shutter Time – 1 s ~ 1/100000 s
- Day & Night – IR-cut filter with auto switch (ICR)
- Smart IR – Supported
- WDR – 120 dB
- S/N Ratio – > 42 dB
- Angle Adjustment – 0~360° (Pan); 0~90° (Tilt); 0~360° (Rotate)
- Lens – Fixed 2.8 mm F1.6, M12 mount
- Field of View – 94.7° (H); 52.5° (V); 118.5° (D)
- DORI Distances – Detect 56 m; Observe 22.2 m; Recognize 11.2 m; Identify 5.6 m
- IR LEDs – 2 pcs, up to 50 m range, 850 nm wavelength
- White LEDs – 2 pcs, whitelight distance up to 15 m
- Video Compression – S+265 / H.265 / H.264B / H.264M / H.264H
- Video Bit Rate – 32 Kbps ~ 6 Mbps
- Audio Compression – G.711A / G.711U / ADPCM_D
- Audio Sampling Rate – 8 / 32 / 48 kHz
- Max Resolution – 4MP, 2592×1520 @ 25 fps
- Main Stream – PAL: up to 25 fps at 2592×1520/2560×1440/2304×1296/1920×1080/1280×720; NTSC: up to 30 fps at 2304×1296/1920×1080/1280×720
- Sub Stream – PAL/NTSC: up to 25/30 fps at 704×576/480, 704×288/240, 640×360, 352×288/240
- Image Functions – BLC, HLC, AGC, 3D DNR, Defog, up to 8 ROI regions
- OSD – 1 text overlay region, up to 48 characters
- Privacy Mask – 4 black static areas
- General Alarms – Motion Detection; Mask Alarm; Disk Full; Disk R/W Error; IP Address Conflict
- Alarm Linkage – Trigger whitelight; trigger recording; trigger capture; notify surveillance center; alarm output
- Video Analytics – Tripwire; Perimeter (up to 2 rules in one scene)
- ANR – Supported
- Network Protocols – HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, ARP, FTP, RTSP
- System Compatibility – P2P (mutually exclusive with Profile G); ONVIF Profile S/T/G; SDK; CGI; Milestone
- Remote Connections – ≤ 2 clients
- Client Software – Easy7 VMS; mobile app EasyLive Plus
- Web Browsers – IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+
- Communication Interface – 1 × RJ-45 (10/100 Base-T)
- Built-in Mic – Yes
- Reset Button – Yes
- On-board Storage – microSD/microSDHC/microSDXC, up to 512 GB
- RTC – Yes
- Operating Temperature – −40°C ~ +65°C; Operating Humidity ≤ 95% RH
- Storage Conditions – −40°C ~ +65°C; 10% ~ 95% RH, non-condensing
- Power Supply – DC12V±25%, Max 6 W; PoE IEEE 802.3af, Max 7 W
- Protection – Surge 4000 V; ESD 6000 V; IP67
- Boundary Dimensions – 160(L) × 73(W) × 73(H) mm
- Package Dimensions – 215(L) × 95(W) × 120(H) mm
- Gross Weight – 0.65 kg
- Model – TC-C34WS Spec:I5W/E/Y/M/2.8mm/V4.2
