4MP Tiandy TC-C34GN SuperLite Fixed 4 mm IR Bullet Camera with Built-in Mic
- Manufacturer:
- Model:TC-C34GN-SPEC-I5-E-Y-C-4MM-V4.2
- SKU:0021521
- 8888
- Weight:0.3 kg without packaging
- MP:4

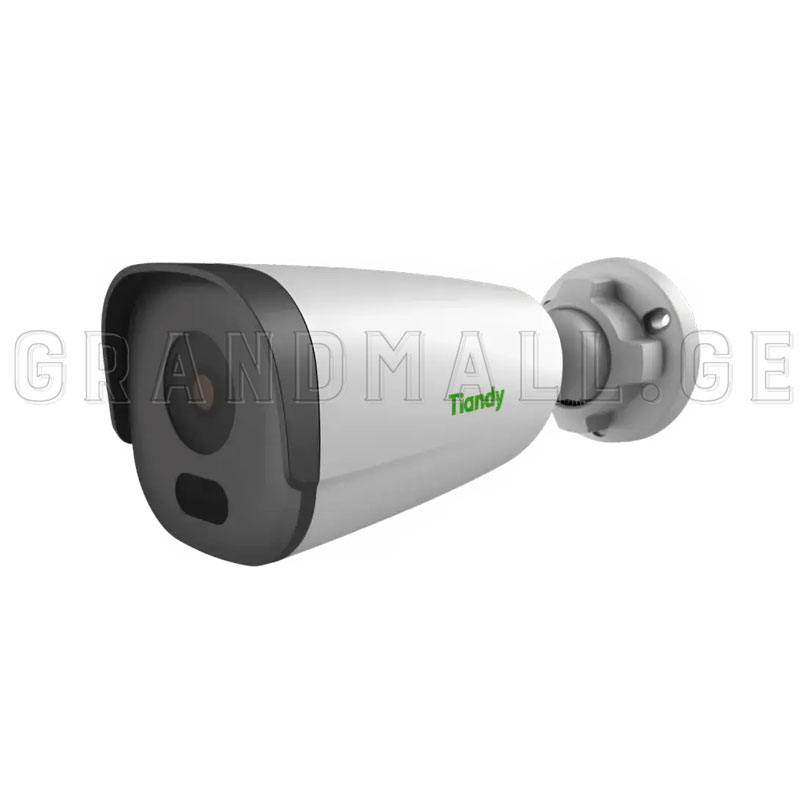

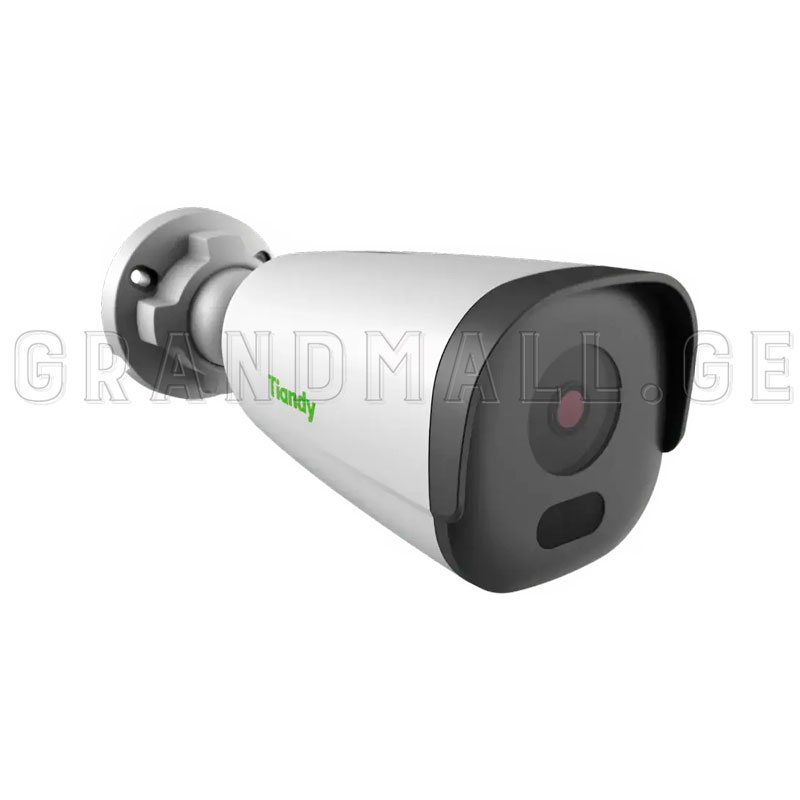

Tiandy TC-C34GN – 4MP SuperLite fixed IR bullet camera for outdoor security
The TC-C34GN from Tiandy’s SuperLite Series is a compact 4MP fixed IR bullet camera tailored for outdoor perimeter, driveway and entrance monitoring. Its 4 mm lens and up to 50 m IR range make it ideal for covering corridors, gateways and fence lines where a medium field of view and long-range night vision are required.
4MP resolution with a fixed 4 mm F1.6 lens
A 1/2.7" CMOS sensor delivers up to 4MP resolution (2688×1520 @ 25 fps), providing clear detail for identification and evidence. The fixed 4 mm F1.6 lens offers a 91° horizontal field of view, giving a balanced perspective between wide coverage and subject detail, well suited to narrow roads and focused zones. :contentReference[oaicite:5]{index=5}
DWDR, 3D DNR, BLC and HLC help deal with mixed lighting, reducing noise and balancing bright and dark areas. With a minimum illumination of 0.02 Lux in color (F1.6, AGC ON) and 0 Lux with IR, the camera continues to deliver usable images even when ambient lighting is low. :contentReference[oaicite:6]{index=6}
50 m IR range, built-in microphone and IP67 housing
Two IR LEDs with 850 nm wavelength provide up to 50 m infrared range, keeping scenes visible in complete darkness. Smart IR and the IR-cut filter with auto Day/Night switching (ICR) maintain consistent exposure and prevent overexposed faces at close range.
The built-in microphone allows the camera to record audio along with video, adding valuable context for incidents and investigations. A metal+plastic IP67-rated housing protects the camera against dust, rain and snow, while its −30°C to +60°C operating temperature range and up to 95% humidity rating support year-round outdoor operation.
PoE power and easy integration with modern NVR/VMS platforms
Power over Ethernet (IEEE 802.3af, max 7 W) simplifies installation by carrying power and data over a single cable. Support for S+265 / H.265 / H.264 reduces bandwidth and storage requirements, and compatibility with ONVIF Profile S/T, RTSP, SDK and Milestone makes integration with third-party NVRs and VMS straightforward.
Specifications:
- Series – SuperLite Series, fixed IR bullet camera
- Housing – Metal + plastic, IP67 rated
- Image Sensor – 1/2.7" CMOS
- Minimum Illumination – Color: 0.02 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
- Shutter Time – 1 s ~ 1/100000 s
- Day & Night – IR-cut filter with auto switch (ICR)
- Smart IR – Yes
- WDR – DWDR
- S/N Ratio – > 39 dB
- Angle Adjustment – 0~360° (Pan); 0~80° (Tilt); 0~360° (Rotate)
- Lens Type – Fixed focal lens
- Focal Length – 4 mm
- Lens Mount – M12
- Aperture Range – F1.6, fixed
- Field of View – 91° (H); 46.4° (V); 107° (D)
- DORI Distance – Detect: 80.0 m; Observe: 31.7 m; Recognize: 16.0 m; Identify: 8.0 m
- IR LEDs – 2 pcs
- IR Distance – Up to 50 m
- IR Wavelength – 850 nm
- Video Compression – S+265 / H.265 / H.264B / H.264M / H.264H
- Video Bit Rate – 32 Kbps ~ 6 Mbps
- Audio Compression – G.711A / G.711U / ADPCM_D
- Audio Sampling Rate – 8 / 32 / 48 kHz
- Max Resolution – 4MP, 2688×1520 @ 25 fps
- Main Stream (PAL) – 25 fps: 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720
- Main Stream (NTSC) – 24 fps: 2688×1520, 2560×1440; 30 fps: 2304×1296, 1920×1080, 1280×720
- Sub Stream (PAL) – 25 fps: 704×576, 704×288, 640×360, 352×288
- Sub Stream (NTSC) – 30 fps: 704×480, 704×240, 640×360, 352×240
- Image Enhancement – BLC; HLC; AGC; 3D DNR
- White Balance – Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warm Light Lamp / Daylight Lamp / Filament Lamp / Lock White Balance
- OSD – 1 text region, up to 48 characters; font sizes 16×16 / 32×32 / 48×48 / 64×64
- Privacy Mask – 4 black static areas
- General Alarms – Motion Detection; Mask Alarm; IP Address Conflict
- Alarm Linkage – Trigger Capture; Alarm Output
- Video Analytics – Tripwire; Perimeter (up to 2 rules in 1 scene)
- Network Protocols – HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; FTP
- System Compatibility – P2P (mutually exclusive with Profile G); ONVIF (Profile S/T); SDK; CGI; Milestone; RTSP
- Remote Connections – ≤ 2
- Client Software – Easy7 VMS; mobile client EasyLive Plus
- Web Browsers – IE10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+
- Communication Interface – 1 × RJ-45 (10/100 Base-T)
- Built-in Mic – Yes
- Operating Temperature – −30°C ~ 60°C
- Operating Humidity – ≤ 95% RH
- Storage Temperature – −30°C ~ 60°C
- Storage Humidity – 10% ~ 95% RH, non-condensing
- Power Supply – PoE: IEEE 802.3af, Max 7 W
- Protection – Surge 4000 V; ESD 6000 V
- Boundary Dimensions – 165(L) × 73(W) × 73(H) mm
- Package Dimensions – 215(L) × 95(W) × 120(H) mm
- Gross Weight – 0.47 kg
- Model – TC-C34GN Spec:I5/E/Y/C/4mm/V4.2
