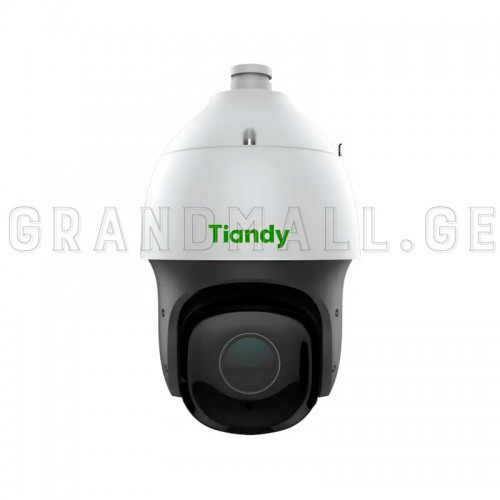

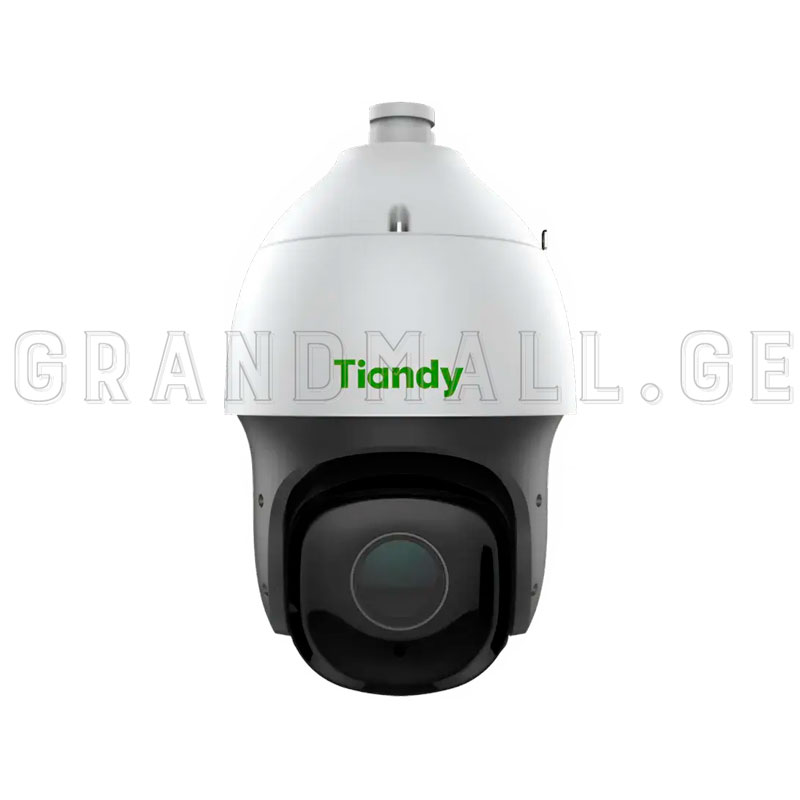

Tiandy TC-H356S 5MP 30X PTZ Camera for High-End Outdoor Surveillance
- Manufacturer:
- Model:TC-H356S-5MP-30X-IR-PTZ
- SKU:0021608
- 2000
- Weight:5.3 kg without packaging
- MP:5
Tiandy TC-H356S – 5MP 30X PTZ camera built for demanding outdoor projects
The Tiandy TC-H356S 5MP 30X IR PTZ Camera belongs to the Pro Series family and is engineered for mission-critical surveillance on large outdoor sites. It combines up to 5MP (2880×1620@30fps) video, 0.001 lux low-light sensitivity and a 30X optical zoom lens, giving you both wide coverage and the ability to zoom in on distant details when it matters most.
30X optical zoom, 5MP clarity and 200 m IR range
Using a 1/2.7" CMOS image sensor and a 4.7–141 mm motorized lens with F1.6–F4.3 aperture, the TC-H356S offers a horizontal field of view from 61.9° down to 2.5°. The 30X optical zoom and 16X digital zoom make it easy to move from an overview of the entire site to close-up inspection of people, vehicles and critical objects.
Ten IR LEDs provide Smart IR illumination up to 200 m, ensuring that the scene remains visible even in total darkness. With 120 dB WDR, 3DNR, BLC, HLC and Defog, the camera maintains balanced images in scenes with strong backlight, headlights or fog, delivering footage that is usable for investigation and evidence.
AI-driven analytics, face capture and automatic tracking
The TC-H356S offers an extensive analytics toolkit: Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Heatmap, People Counting, Loitering, Running, Parking, Crowd Detection, Safety Helmet Detection, On Duty Detection and Video/Audio Abnormal detection. These capabilities help operators focus on real security incidents instead of passively watching cameras.
Face Capture mode can detect up to 32 faces and capture up to 16 faces within a single scene, ideal for entrances and other high-traffic areas. Auto Tracking automatically follows selected persons or vehicles using PTZ movements and the 30X zoom, increasing situational awareness and reducing operator workload.
Rugged IP66 metal housing and flexible integration
The metal housing is rated IP66, protecting the camera from dust, rain and harsh weather. Operating temperatures from −40°C to +70°C and humidity up to 95% RH make the TC-H356S suitable for exposed outdoor installations in a wide range of climates. 360° pan, fast preset speeds and multiple cruises and patterns allow you to design effective patrol routes around the site.
Power options include AC24V±25%, DC24V±10% and PoE (IEEE 802.3bt). The camera features a 10/100Base-T RJ-45 interface, audio I/O, alarm I/O and RS-485, along with support for ONVIF Profile S/T/G/M, RTSP, RTMP, HTTPS and Tiandy Easy7 VMS. A built-in microSD card slot (up to 512 GB) provides redundant on-board recording, so key video is retained even if the network or NVR connection is interrupted.
SPECIFICATIONS:
- Image Sensor - 1/2.7" CMOS
- Min. Illumination - Color: 0.001 lux @ (F1.6, AGC ON); B/W: 0 lux with IR
- Shutter Time - 1s ~ 1/100000s
- Day & Night - IR-cut filter with auto switch (ICR)
- Smart IR - Yes
- WDR - 120 dB
- S/N Ratio - 39 dB
- Focal Length - 4.7 mm ~ 141 mm
- Optical Zoom - 30X
- Digital Zoom - 16X
- Zoom Speed - < 5 s
- Aperture Range - F1.6 ~ F4.3 (Auto, P-Iris)
- Field of View - 61.9°~2.5° (H); 35.5°~1.4° (V); 69.1°~2.9° (D)
- IR LEDs - 10
- IR Distance - Up to 200 m
- Pan Range - 360°; Manual 0.1°~180°/s; Preset 240°/s
- Tilt Range - -16°~90°; Manual 0.1°~120°/s; Preset 120°/s
- Presets / Cruise / Pattern - 500 presets; 16 cruises; 8 patterns
- Video Compression - S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG
- Max. Resolution - 5MP, 2880×1620 @ 30fps
- Audio Compression - G.711A / G.711U / ADPCM_D / AAC_LC
- Video Analytics - Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Heatmap, People Counting, Loitering, Running, Parking, Crowd Detection, Safety Helmet Detection, On Duty Detection, Video/Audio Abnormal, Face Capture
- On-board Storage - Built-in Micro SD card slot, up to 512 GB
- Network Interface - 1 × RJ-45 (10/100Base-T)
- Power Supply - AC24V±25% / DC24V±10%; PoE: IEEE 802.3bt
- Power Consumption - 20 W (IR OFF); 38 W (IR ON)
- Protection - Surge 4 kV; ESD 6 kV; IP66
- Operating Temperature - -40°C ~ 70°C; ≤95% RH
- Material - Metal
- Product Dimension - 222 mm (D) × 372 mm (H)
- Package Dimension - 320 × 320 × 520 mm
- Net Weight - 5.3 kg
- Gross Weight - 8.45 kg
- Model - TC-H356S Spec:30X/I/E++/A/V3.0
