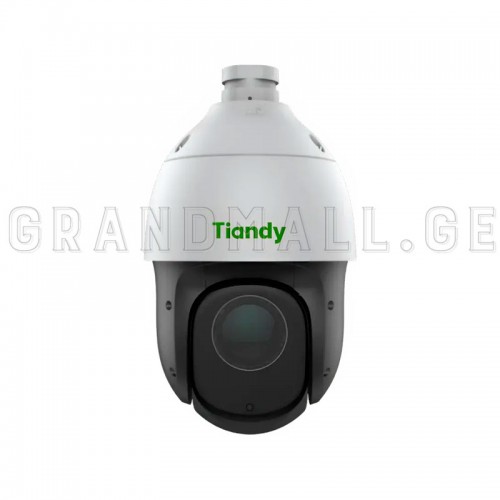

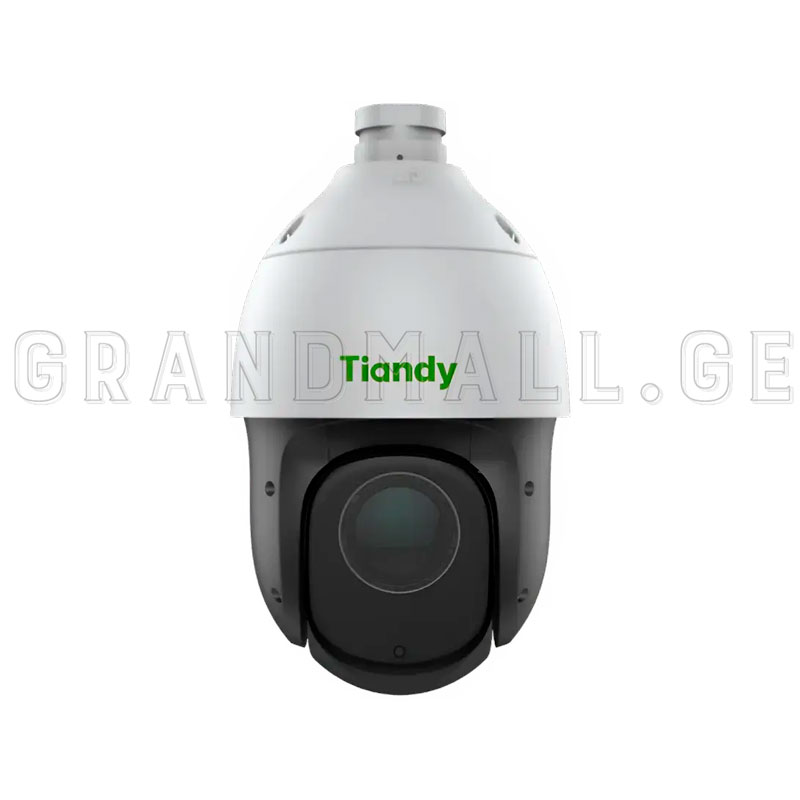

Tiandy TC-H324S 2MP 25X PTZ Camera for Professional Outdoor Surveillance

  • Rating:
  • Manufacturer:
  • Model:
    TC-H324S-SPEC:25X-I-E-V3
  • SKU:
    0021602
  • Weight:
    3 kg without packaging
  • MP:
    2

Tiandy TC-H324S – 2MP 25X PTZ camera from the Pro Series line

The Tiandy TC-H324S 2MP 25X IR PTZ Camera is part of Tiandy’s Pro Series, designed for demanding outdoor surveillance projects. It delivers 2MP (1920×1080@30fps) video, ultra-low-light performance from 0.001 lux and a 25X optical zoom lens, allowing you to monitor both wide scenes and distant targets with the same device.

25X optical zoom, 150 m IR and 120 dB WDR

The motorized 4.8–120 mm lens with an aperture of F1.5–F3.8 offers a horizontal field of view from 58.5° down to 2.8°, giving you full control over how tightly the scene is framed. Combined with 16X digital zoom, the 25X optical zoom lets you inspect remote objects while maintaining image clarity.

Six IR LEDs provide up to 150 m of infrared range, ensuring visibility in complete darkness. With 120 dB WDR, 3D DNR, BLC, HLC and Defog, the camera maintains readable footage in scenes with strong backlight, headlights or fog, which is critical for entrances, roads and open yards.

AI-powered analytics, face capture and auto-tracking

The TC-H324S offers a comprehensive analytics suite: Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Heatmap, People Counting, Loitering, Running, Parking and Video/Audio Abnormal detection. Face mode allows the camera to detect up to 32 faces and capture up to 16 faces in a single scene, making it suitable for access points and high-traffic areas.

Auto-Tracking uses PTZ movements and the 25X zoom to keep selected persons or vehicles centered in the frame automatically, significantly improving situational awareness for security operators. Built-in microSD storage (up to 512 GB) adds an extra layer of resilience by keeping critical footage recorded locally.

Outdoor-ready metal housing and system integration

The camera features a metal housing rated IP66, protecting it against dust, rain and harsh weather. It operates from −30°C to +65°C with humidity up to 95% RH, which makes it suitable for exposed installations on industrial sites, parking areas and perimeter fences. Multiple mounting options (wall, ceiling and pole) help you place the PTZ exactly where it is most effective.

With DC12V ±10% and PoE (IEEE 802.3at) power options, a 10/100Base-T RJ-45 interface and ONVIF Profile S/T/G/M compatibility, the TC-H324S integrates smoothly into existing NVR and VMS ecosystems. Support for common network protocols and Tiandy’s Easy7 VMS ensures straightforward configuration and daily operation.

SPECIFICATIONS:

  • Image Sensor - 1/2.8" CMOS
  • Max. Resolution - 2MP, 1920×1080 @ 30fps
  • Min. Illumination - Color: 0.001 lux @ (F1.5, AGC ON); B/W: 0 lux with IR
  • Optical Zoom - 25X
  • Digital Zoom - 16X
  • Focal Length - 4.8 mm ~ 120 mm
  • Aperture Range - F1.5 ~ F3.8
  • Field of View - 58.5° ~ 2.8° (H); 33.2° ~ 1.5° (V); 65.2° ~ 3.3° (D)
  • WDR - 120 dB
  • Smart IR - Yes
  • IR LEDs - 6
  • IR Distance - Up to 150 m
  • Pan Range - 360°; Manual up to 200°/s; Preset 240°/s
  • Tilt Range - -16° ~ 90°; Manual up to 120°/s; Preset 180°/s
  • Preset / Cruise / Pattern - 500 presets, 16 cruises, 8 patterns
  • Video Compression - S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG
  • Audio Compression - G.711A / G.711U / ADPCM_D / AAC_LC
  • Smart Features - Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Heatmap, People Counting, Loitering, Running, Parking, Video/Audio Abnormal, Face Capture
  • On-board Storage - Built-in Micro SD card slot, up to 512 GB
  • Network Interface - 1 × RJ-45 (10/100Base-T)
  • Power Supply - DC12V ±10%; PoE: IEEE 802.3at
  • Power Consumption - 9 W (IR OFF); 22 W (IR ON)
  • Protection - Surge 4 kV; ESD 6 kV; IP66
  • Operating Temperature - -30°C ~ 65°C; ≤95% RH
  • Material - Metal
  • Product Dimension - 161 mm (D) × 276 mm (H)
  • Package Dimension - 260 × 260 × 465 mm
  • Net Weight - 3 kg
  • Gross Weight - 5.1 kg
  • Model - TC-H324S Spec:25X/I/E/A/V/V3.0
